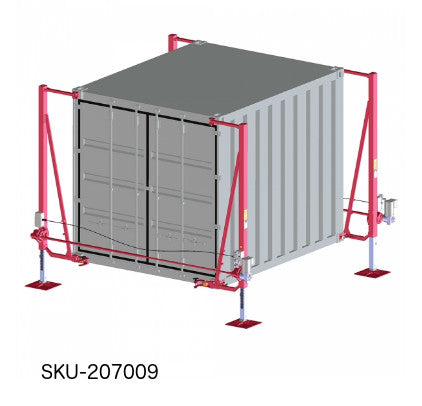

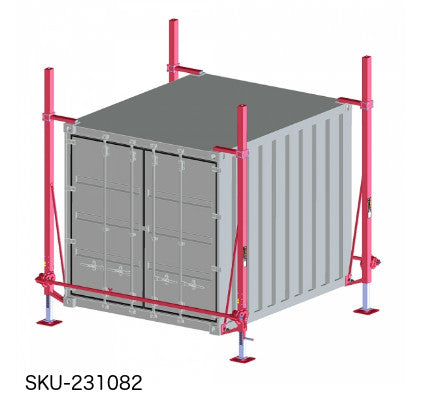

Container Lifting Jacks are suitable for lifting containers on and off trucks without the need of a crane on site. Perfect for confined spaces or where cranes are unable to access. Our lifting stems are modular in design so that low-cost solutions are available for your specific requirements. A lifting system consists of four lifting supports. For lowering a container from a truck, the jacks are mounted and locked into the ISO-corners. Then the jacks are lowered to the ground and the container is lifted so that the truck can drive out. After that, the container can be lowered either to its working position or to the ground. Depending on the application of the lifting support, the following technical parameters can be achieved:

• Raise and lower Container weights of 4 t to 15 t
• Lifting heights from 500 mm to 1,750 mm (Optional maximum: 2,000 mm)
• Attachment to ISO corners
• Position Control – Innovative inclinometer-based position control is a special characteristic of our lifting systems.
• Lifting and lowering action parallel to the ground during loading operations in uneven terrain (patented)
• Automatic initial inclination detection
• Inclination offset to zero degrees
• Control precision: +/- 0.1 degrees
• Safety shutdown when inclination exceeds 3.5 degrees (or 6 degrees, as required)
• Individual support control unit available as optional attachment
• Non-standard lifting heights
• Modified basic carrying capacity
• Specially adapted mounting and interlocking systems
• Special base plates
• Holding fixtures for easy lifting support transportation
• Tailor-made solutions with regard to functionality and intended uses
• Advice and assistance to customers implementing specific projects
• Special colours and paint coats
• Expertise and expedient performance when it comes to tests, trials and provision of samples
• Special manual winch to assemble heavy item

**please call one of our sales team for more information**

*product manuals available for each product on request*
